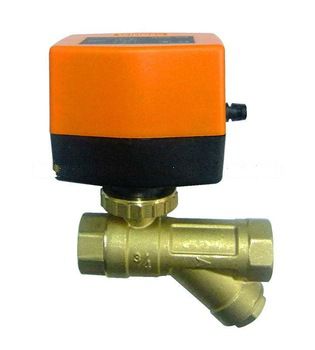

Pressure regulation balancing valve dn15

Pressure regulation balancing valve dn15

FOB Price:
US 50-80 / Piece
Min.Order Quantity:
1 Piece/Pieces
Supply Ability:
2800 Piece/Pieces per Week
Port:
Changsha
Place of Origin:
Hunan, China (Mainland)
Payment Terms:
L/C,T/T,Western Union
Brand:
WINNER
Products Model:
WRA-6320A/10A/02A
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: WINNER

    Model Number: WRA-6320A/10A/02A

    Place of Origin: Hunan, China (Mainland)

Packaging & Delivery

  • Packaging Details: 39 units per packge, carton size : 50*33*29cm
  • Delivery Detail: within 7 days after payment

Specifications

balancing valve dn15
1. Control: 3-point
2. 1/2'', 3/4'' and 1''
3. Voltage: 220VAC
4. pressure regulation

 Contacts: Mrs Vivian

 Mobile:+86 13677320684

     WPCV  series dynamic balance control ball valves consist of self-operated pressure regulator and equal percentage ball valve, matching with on/off, 3-piont or proportional actuator.  It is  mainly used in terminal air conditioner Equipment to control the temperature in HVAC system.



Description:



Modle No. Voltage Actuato type Output torque Diameter Valve type Closing pressure Rated flow  Medium Material
WPCV-15A 220VAC 3-Point 4N.m DN15 V angle equal percentage 4140 kpa 0.06-0.43 cool/hot water 50% glycol solutions      temprature: 0-95°C valve body: forged brass ball:      chrome plated brass seal(ball): EPDM+PTFEseal(stem): EPDM    spring; stainless steal
WPCV-15 24VAC Proportional
WPCV-15B 220VAC on/off on/off
WPCV-20A 220VAC 3-Point DN20 V angle equal percentage 0.37-0.66
WPCV-20 24VAC Proportional
WPCV-20B 220VAC on/off on/off
WPCV-25A 220VAC 3-Point DN25 V angle equal percentage 0.69-1.02
WPCV-25 24VAC Proportional
WPCV-25B 220VAC on/off on/off



Application
Water-side control of air handling unit in ventilations
and air-conditioning plants heating system control
Water-side control in heating plants
Fan coil control
VAV reheat



Product feature
1.Equal-percentage characteristic
Equal-percentage characteristic of the flow is ensured by the “v” angle ball core valve.


2.Constant flow volume V
Constant flow volume V with various differential pressures of 35…350KPa, because of the
integrated pressure regulator. A valve authority of 1 is attained, regardless of differential pressure
variations across the valve.



Technical data
Valve body:
Medium: cold/hot water, with 50% glycol

Temperature of medium: 2°C...100°C
Rated pressure: 4140kPa

 Flow characteristic: equal percentage, on/off
Pipe connector: internal thread

Differential pressure: 30…350kPa
Closing pressure ps:1400kPa

Angle of rotation: 90°
Installation position: vertical to horizontal (referred to the valve stem)
Material
Valve body: forged brass Seal: ball: EPDM+PTFE
Ball: chrome-plated brass stem: EPDM
Valve shaft: stainless steel Regulator: stainless steel Spring for valve cone: stainless steel
